Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Eachin LED
  • Model Number: Indoor Rental SMD Stage Spuer Slim HD LED Video Wall
  • Usage: Indoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 3mm/3.75mm/4mm/4.8mm/5mm/5.2mm/6mm
  • Screen Dimension: 3x2mts/4x3mts/5x4mts/6x4mts
  • Size of LED Cabinet: 480mmx480mm/576x576mm
  • Weight of LED Cabinet: 8-10KG
  • Thickness of LED Screen: 50mm
  • LED Control system: Nova/Linsn
  • LED Chip: Epistar/Cree/Nichia
  • LED Video Processor: LVP 605S With HDMI
  • Power Supply: Meanwell/YHY
  • Wanrranty: 2-3years
  • Material Of LED Screen: Die Casting Aluminum
  • Project Location: Italy,Sweden,Germany,Colombia,Mexico,USA,Chile,Peru,Brazil

Packaging & Delivery

Packaging Details Flight Case Or Wooden Case
Delivery Time 7-25days

P3 P4 P5 P6 SMD Indoor full color rental hanging LED Module LED display



[ Characteristic of Rental LED Display Screen ]



1)Super slim,super light,easy to carry,to transport.
Cabinet size:480mm*480mm*50mm(P3,P4,P5)
                      576mm*576mm*50mm(P6)



Cabinet weight:8kg/10kg

2)Die-casting Aluminum: very stable, no deformation.

3)Flatness: forming mold in one time, accurate to 0.2mm.

4)No noise: with fanless power supply, it's completely quiet.

5)Fast installation: only one man can install 50 cabinets by hand within an hour

6)High definition:111,111dots/sqm(P3)

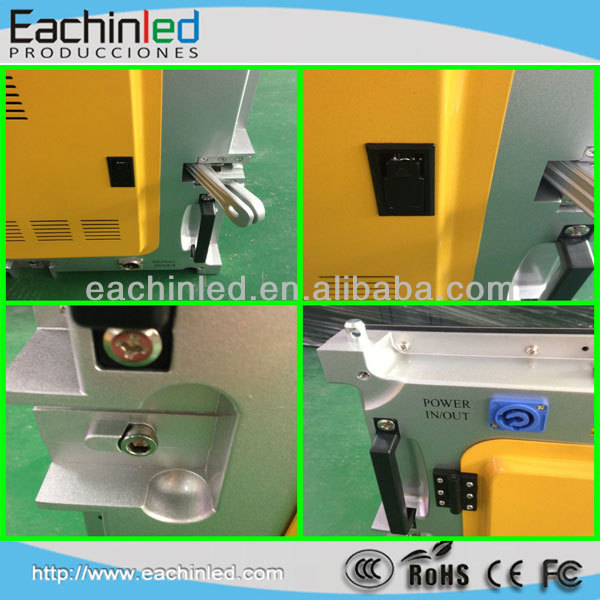

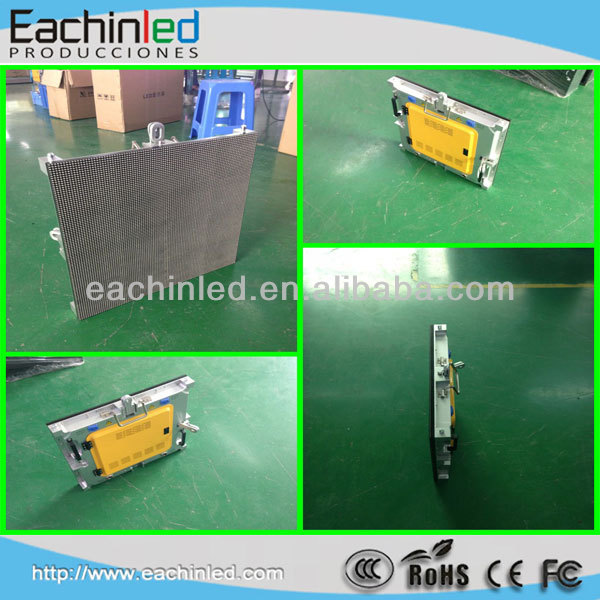

[Photos of Rental LED Screen Cabinet]




[Packaging of Flight Case]

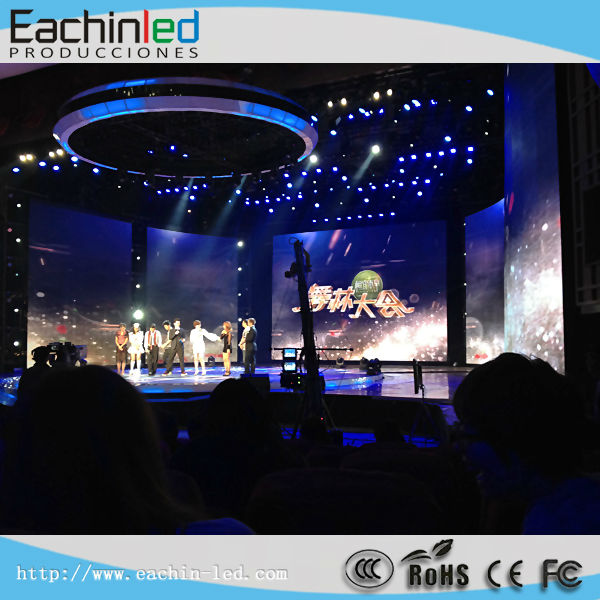

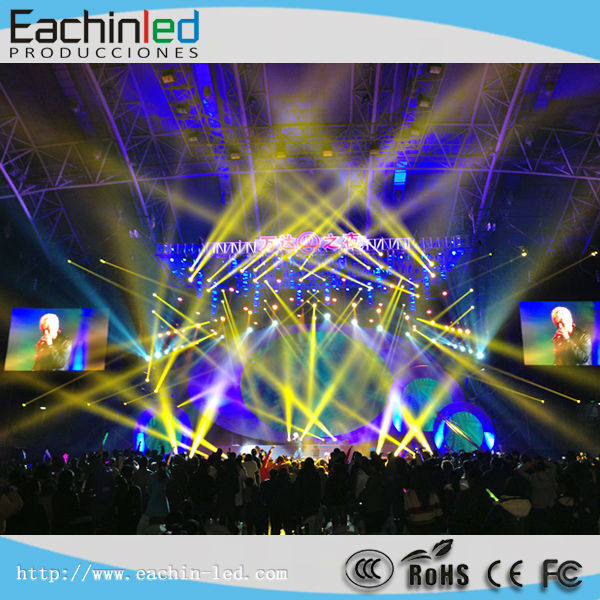

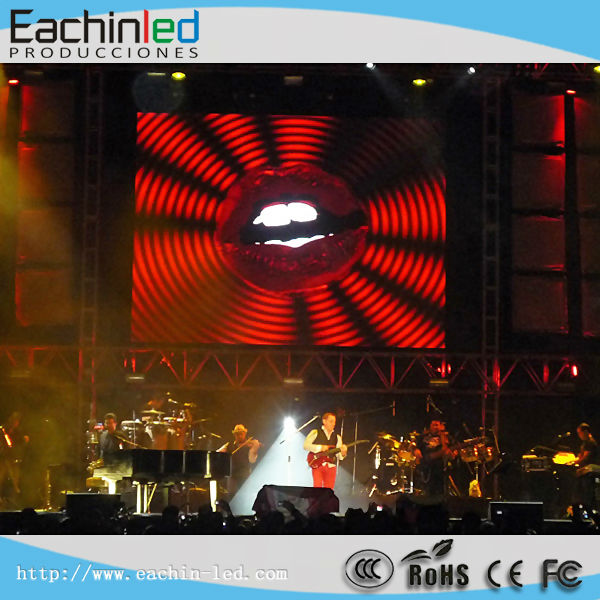

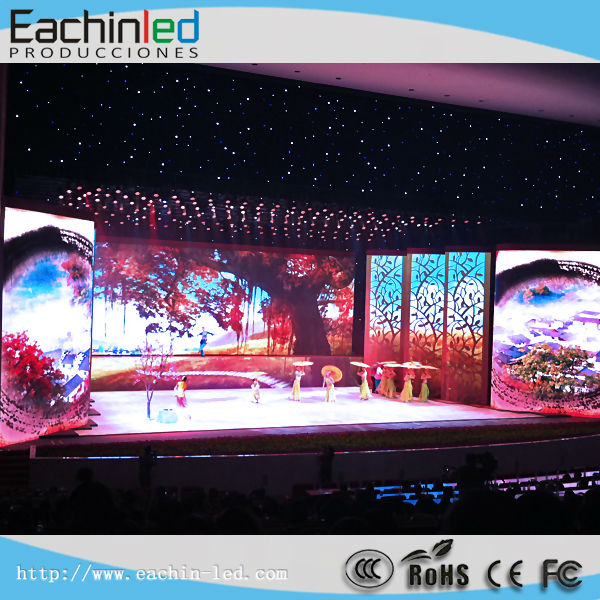

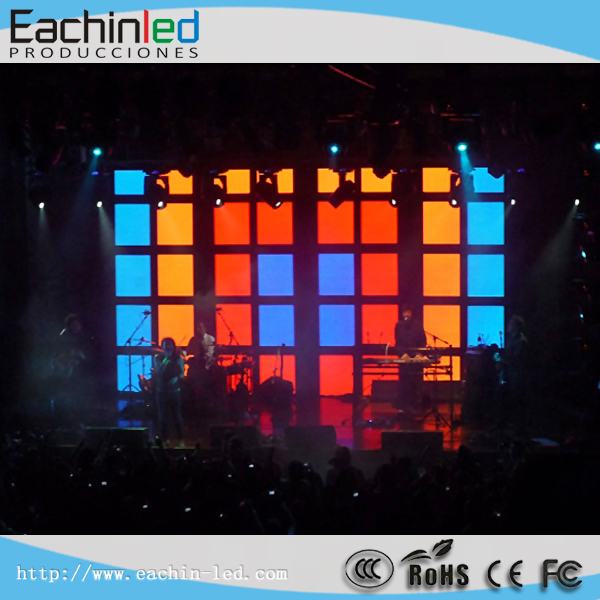

[Photos of Project On Rental Aluminum LED Display Screen]




[Our Services]

1)Reply your inquiry in 24 working hours.

2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc.

3)Customized design is available,OEM & ODM are welcomed.

4)Exclusive and unique solution can be provided to our customer by our well-trained and    professional engineers and staffs.

5)Special discount and protection of sales area provided to our distributor.

6)Warranty: 24 months, a little investment for longer warranty time.



[Technical Details]

Indoor Die casting Aluminum Rental LED Displays

Module

Pitch/mm



P3



P4

P5

P6

Module size/mm

240x240

240x240

240x240

288x288

Density of pixel/(dots/m2)

111,111

62,500

40,000

27,777

Pixel composition

SMD 3 in 1

SMD 3 in 1

SMD 3 in 1

SMD 3 in 1

Led encapsulation

SMD2121

SMD2121

SMD3528

SMD3528

Resolution of module

80x80

60X60

48X48

48X48

Optimum viewing distance

2-10

3-15m

5-16m

7.5-20m

Main

View angle / °

140H,120V

140H,120V

140H,120V

140H,120V

Max power consumption/W/M2

1200

1,100

1,000

1,000

Size of cabinet/mm

80X480

480X480

480X480

576x576

Resolution of cabinet

160x160

120X120

96X96

96x96

Weight of cabinet/kg

8

8

8

11

Driving method

1/16 scan constant current

1/15 scan constant current

1/16 scan constant

current

1/8 scan constant current

Refresh rate Hz/S

1500

≥1500

≥1500

≥1500

Luminance of white balance

≥1500 nits

≥1500 nits

≥1500 nits

≥1500 nits

Operation of Environmental Temperature/°C



below 30  to  above 50

Working voltage

110-220 VAC/+/- 10%

Grey scale/color

displaying colors≥16.7M(synchronized)

Brightness adjustment

256 levels of each color(manually),100 levels of each color(automatically)

Input signal

RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc

Control system

linsn(sending card,receiving cards and Hubs)

Average of non-failure life

>50,00h

Life span

>100,000h

Functionless  dot rate

<0.0001
